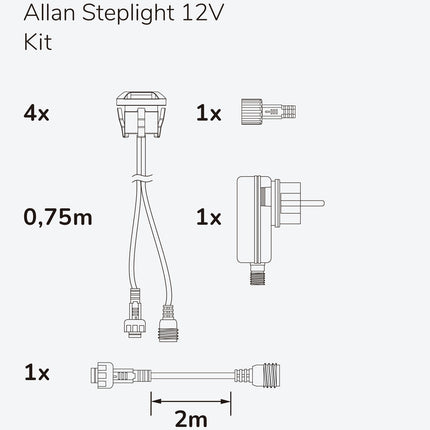

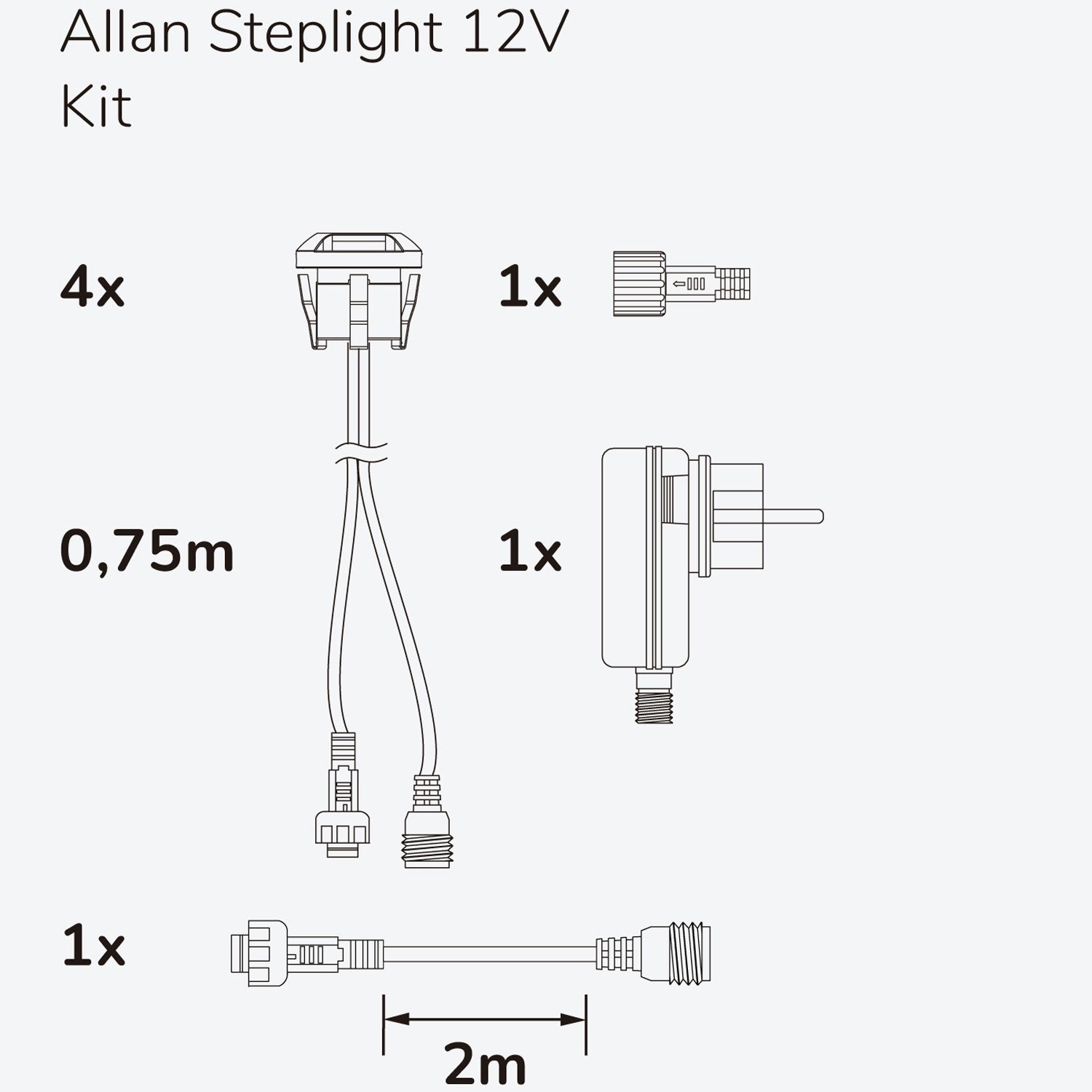

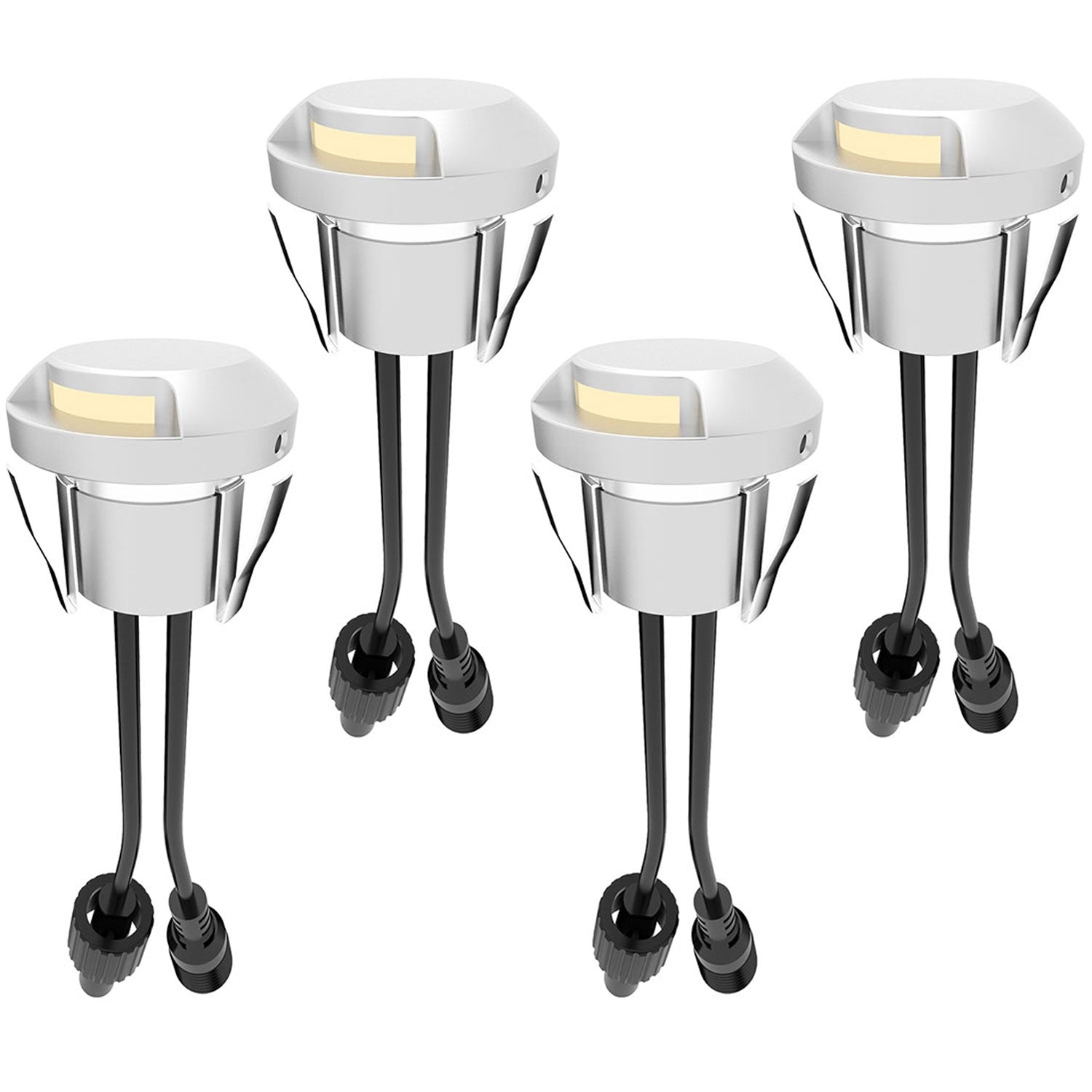

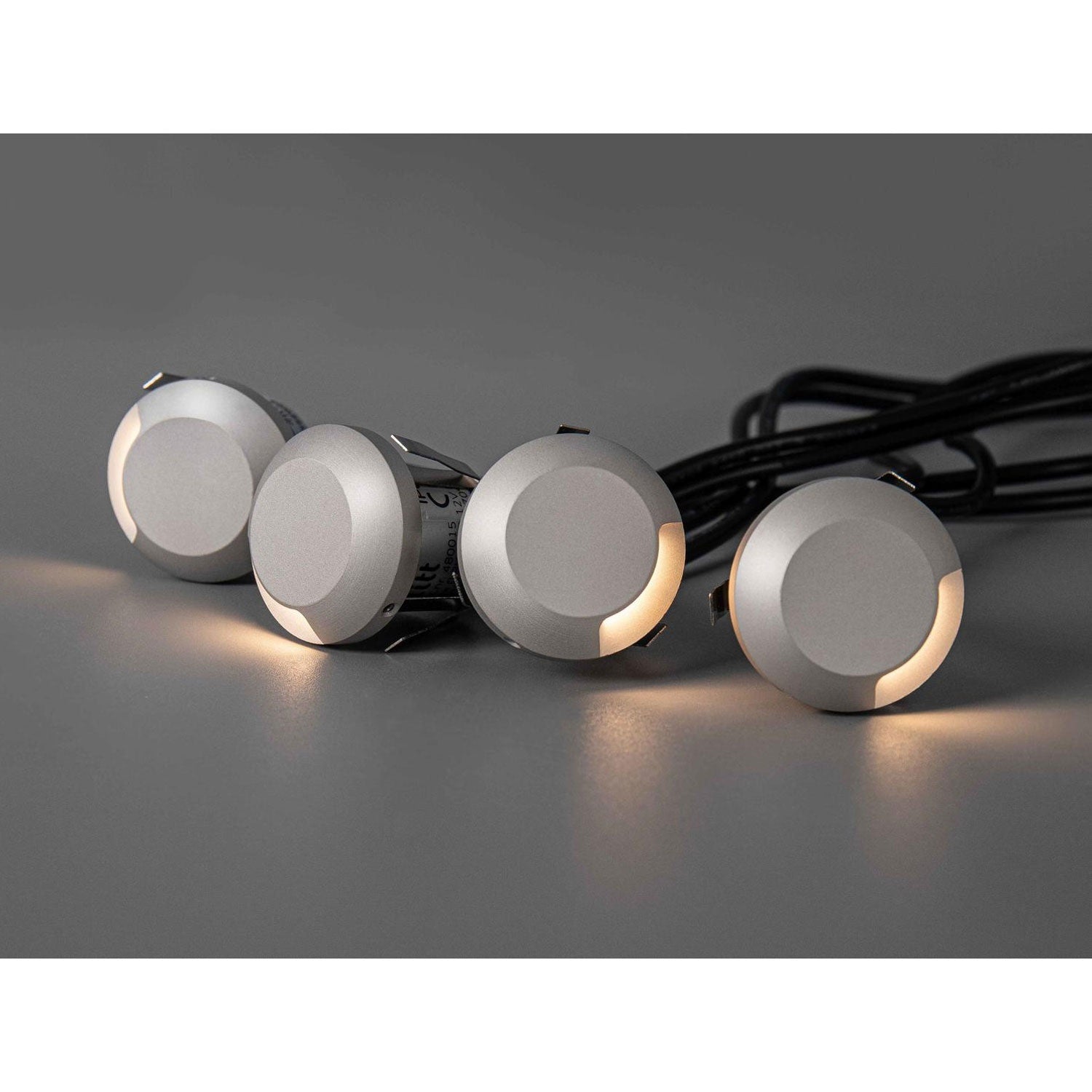

Allan steplight kit (4 steplights + transformer) Allan Steplight is perfect for those of you who want to give your patio that little something extra. With a brightness of 5 lumens and a color temperature of 3000K, you get a pleasant light on the stairs here, which contributes to an exclusive feeling. Allan Steplight is available both in a set of 4 luminaires including transformer with plug and as an individual luminaire, which means you can adapt the number to your exact needs. Allan Steplight comes with an IP67 rating, which means you can feel confident that it is there to illuminate your steps regardless of the weather.

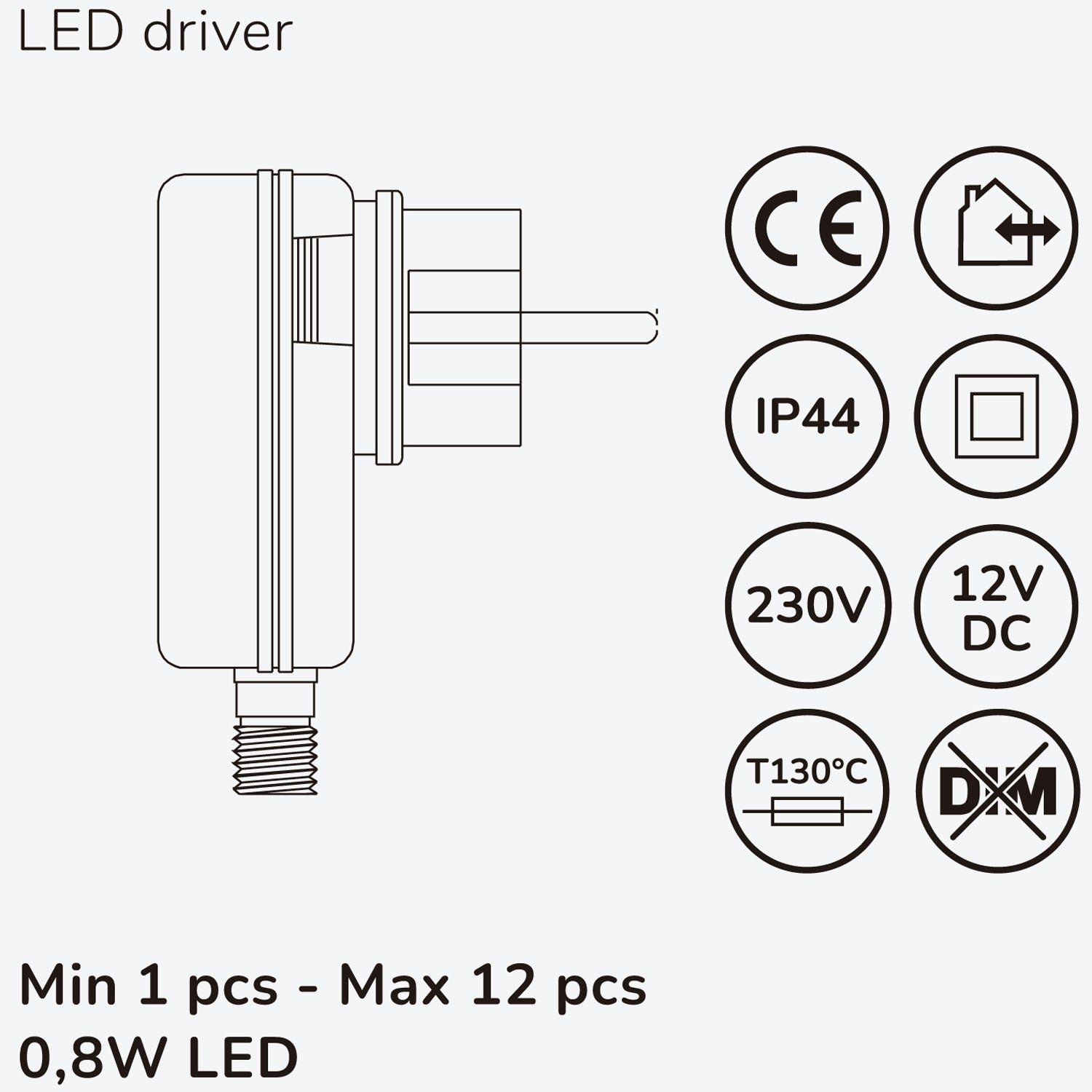

The Allan family gives you the option of connecting up to 12 luminaires to the same 12V transformer and here you can mix the garden luminaires with both Allan Decklight and Allan Spotlight for an overall solution that suits you. For example, use Allan Decklight for your balcony floor, Allan Steplight for the stairs down to the garden and Allan Spotlight in the flower bed next to it and connect them all to one and the same driver.

Specifications

Lighting technical data Light colour: Warm white Colour temperature (K): 3000 Colour rendering (Ra): >80 Color tolerance (SDCM): 3 Luminaire lumen (lm): 5 Light distribution: Symmetrical Diffusion angle (°): 110 Life (h): 75000

Technical data Voltage Range (V): 220...240 System power (W): 4.5 Efficiency luminaire (lm/W ): 6

Operation and connection Drive included: Yes Dimmable: No IP class: 67

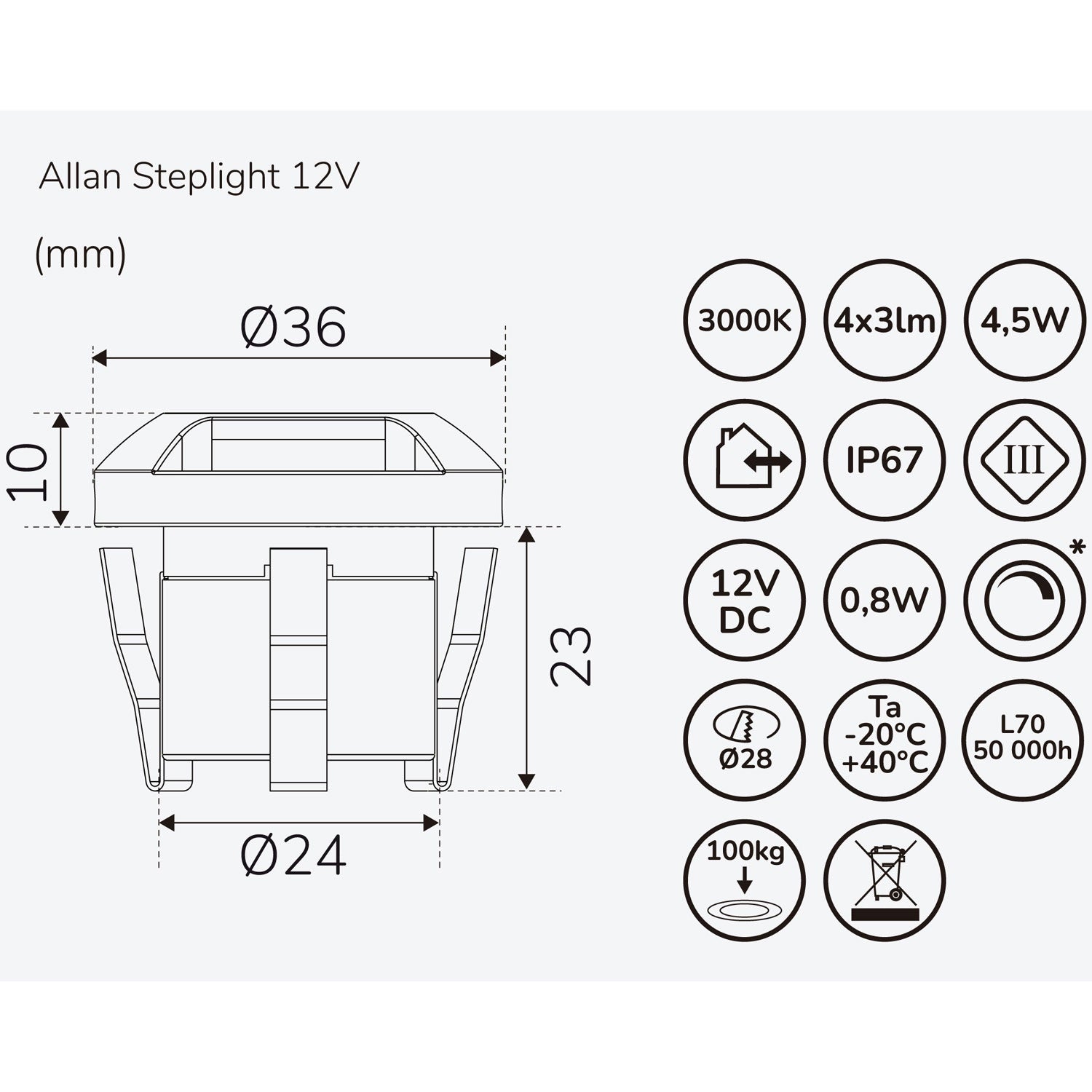

Dimensions and installation Operating environment: Outdoor Protection class: III Mounting: Floor, Recessed Height (mm): 33 Diameter ( mm): 36 Weight (kg): 0.45

Color and material Material: Aluminum Color: Aluminum

Product document

Manual
