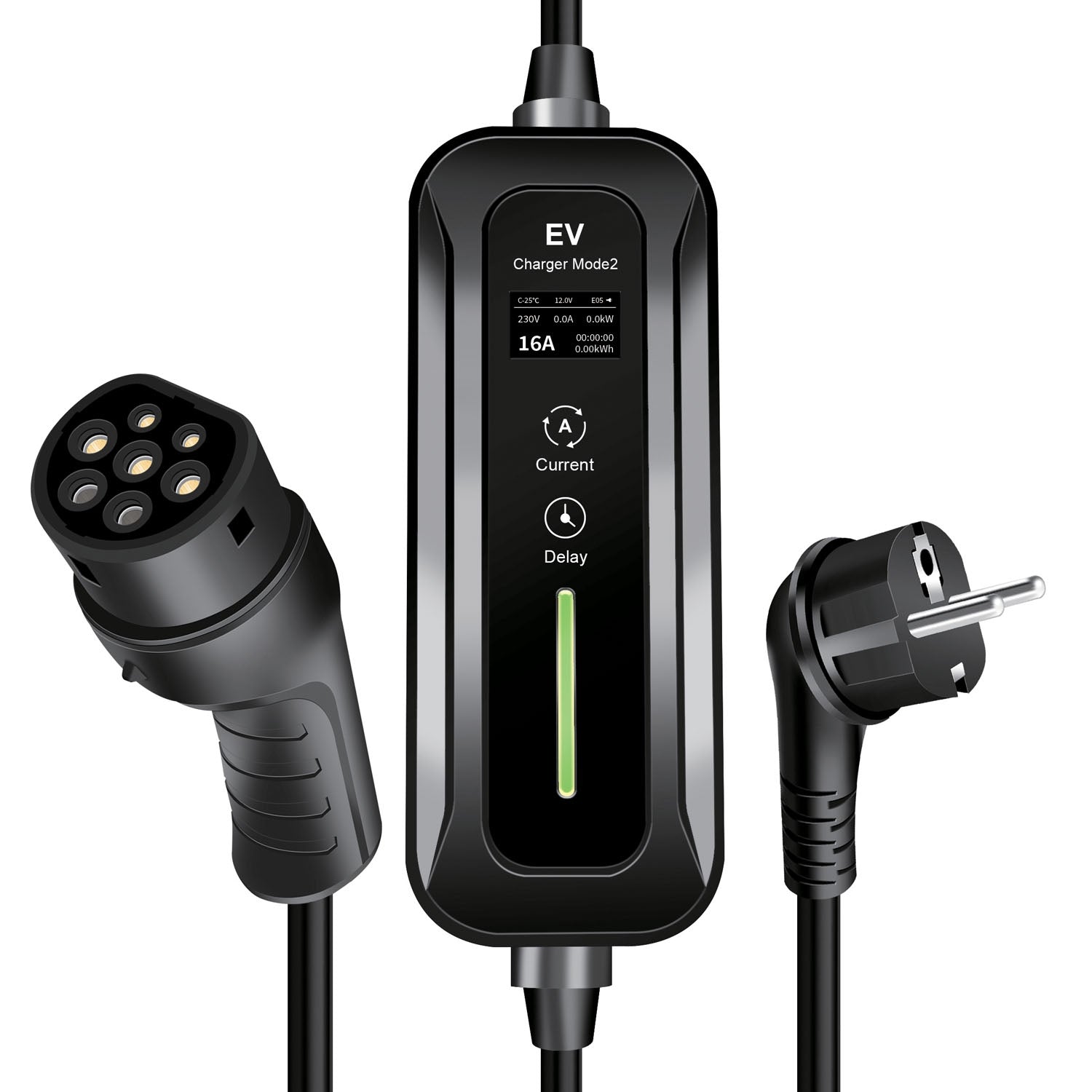

LogiLink portable charging station for electric cars - Grounded plug for Type 2

• Type 2 • 1-phase • 16A • 3.7 kW • 7.5 meters

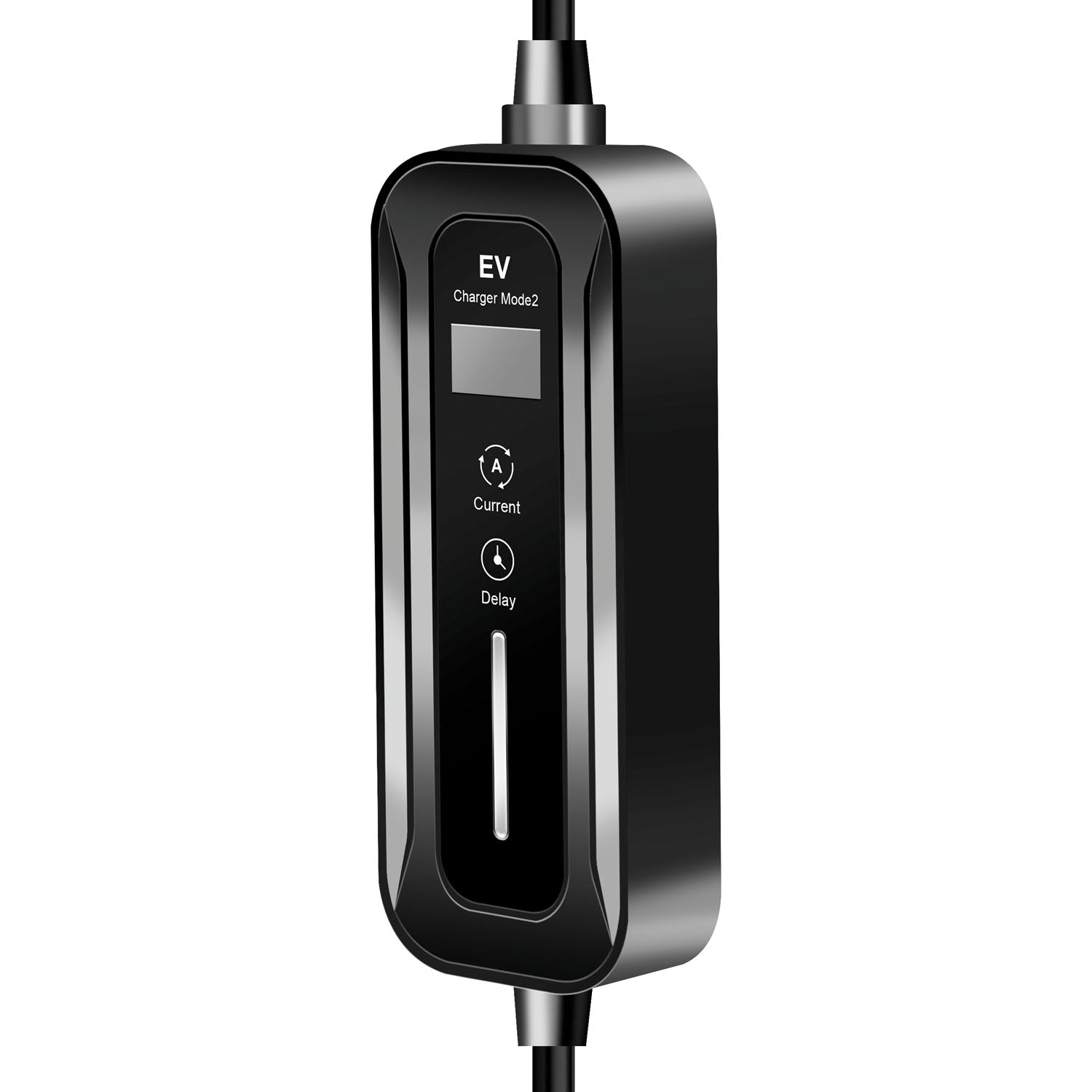

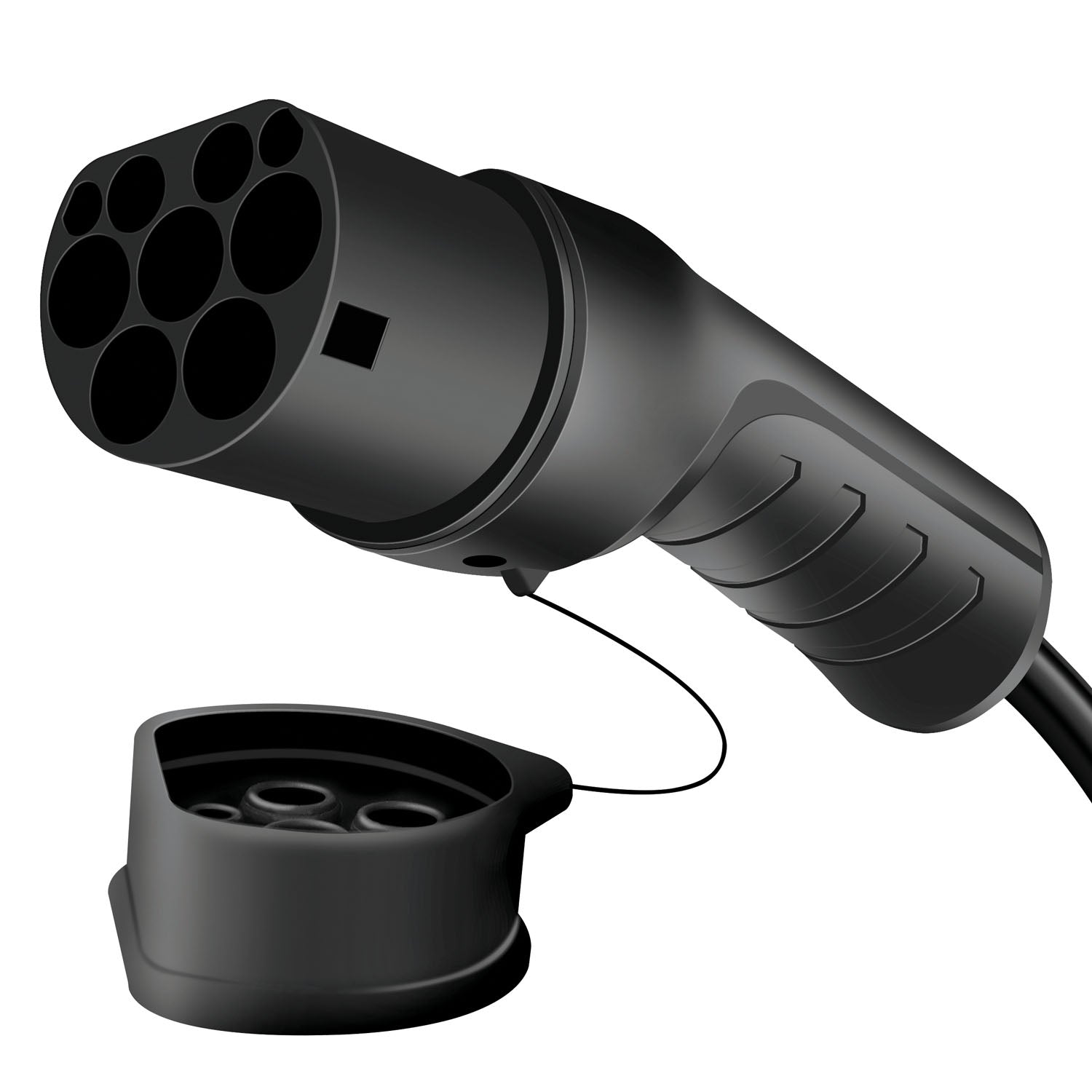

The portable charging station for electric cars (emergency charging cable) from LogiLink offers a smart and convenient way to charge electric cars and electric plug-in hybrids. The earthed plug can be connected to any normal 230 V socket. The vehicle connector on the charging cable is compatible with all electric vehicles and hybrid vehicles with a type 2 connection. The LCD display shows the status of charging current, voltage, power, charging time, charging process and temperature. The cable with IP67 protection class is the perfect companion on the road for charging plug-in hybrids (PHEV) and electric vehicles (BEV) in emergency situations (when no charging station is available).

Remember that the charging effect on the vehicle may need to be adjusted while charging with portable charging stations via standard wall outlet.

Specifications Connection 1: Earthed plug (CEE 7/7) Connection 2: Type 2 (female) Charging: Mode 2 (IEC 61851-1) Connectors: According to IEC 62196-2 Cable standard: EN 50620 (3x2.5mm² + 1x0.5 mm² ) Certificate CE & TUV certified (fire, oil, UV, acid and low temperature resistance) Charging power: Up to 3.7 kW, 1-phase Max charging current: 26 A at a nominal voltage of 230 V AC IP rating/protection: IP67 Operating temperature: -30 °C to +50 °C Housing: Plastic Colour: Black Cable length 5 m Packaging: Brown cardboard
