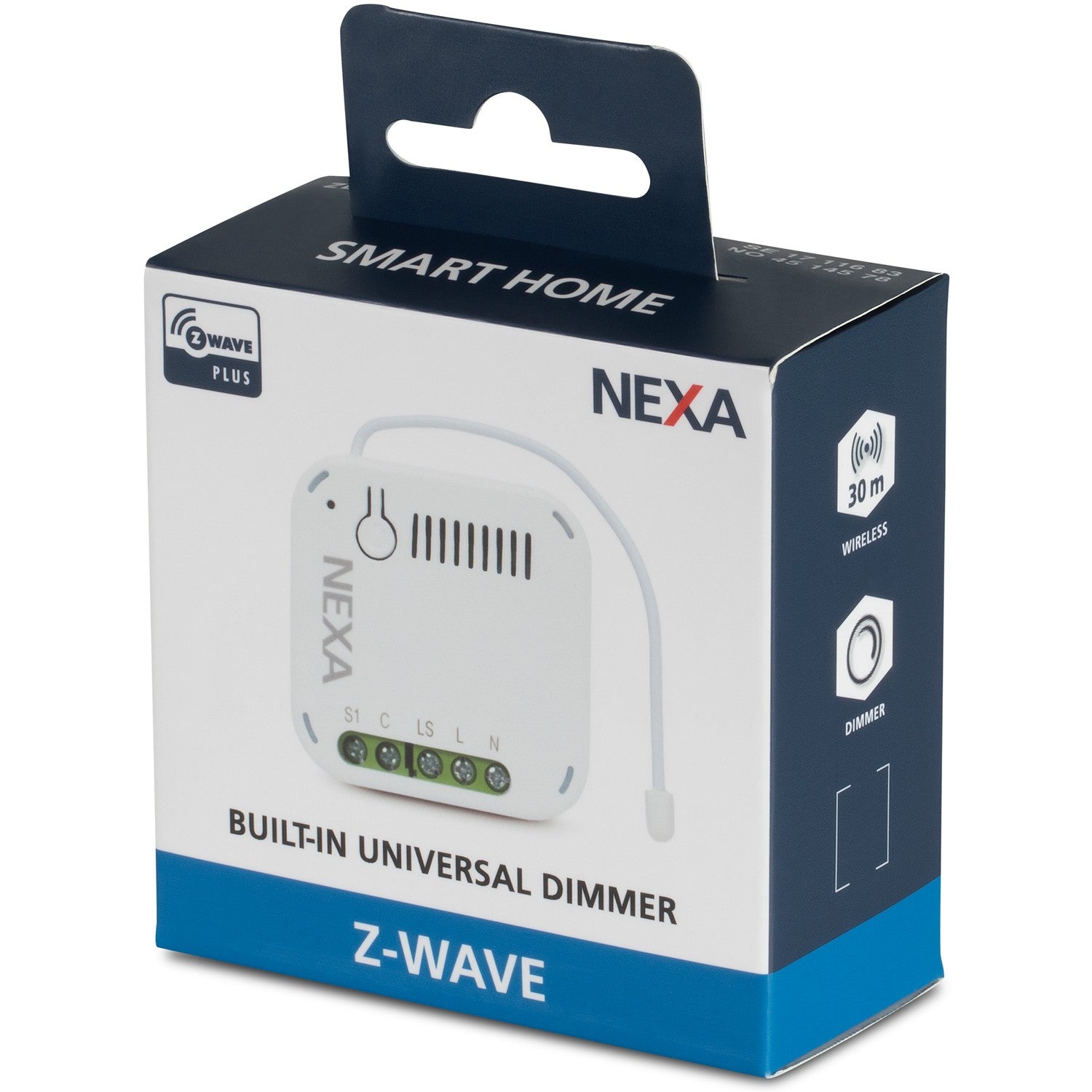

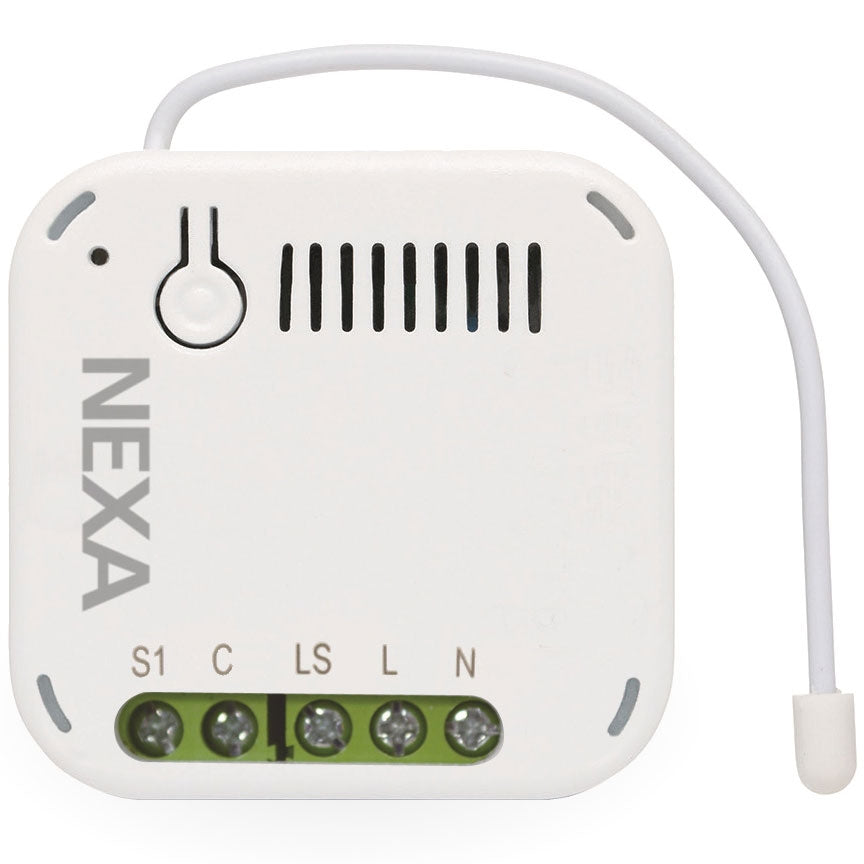

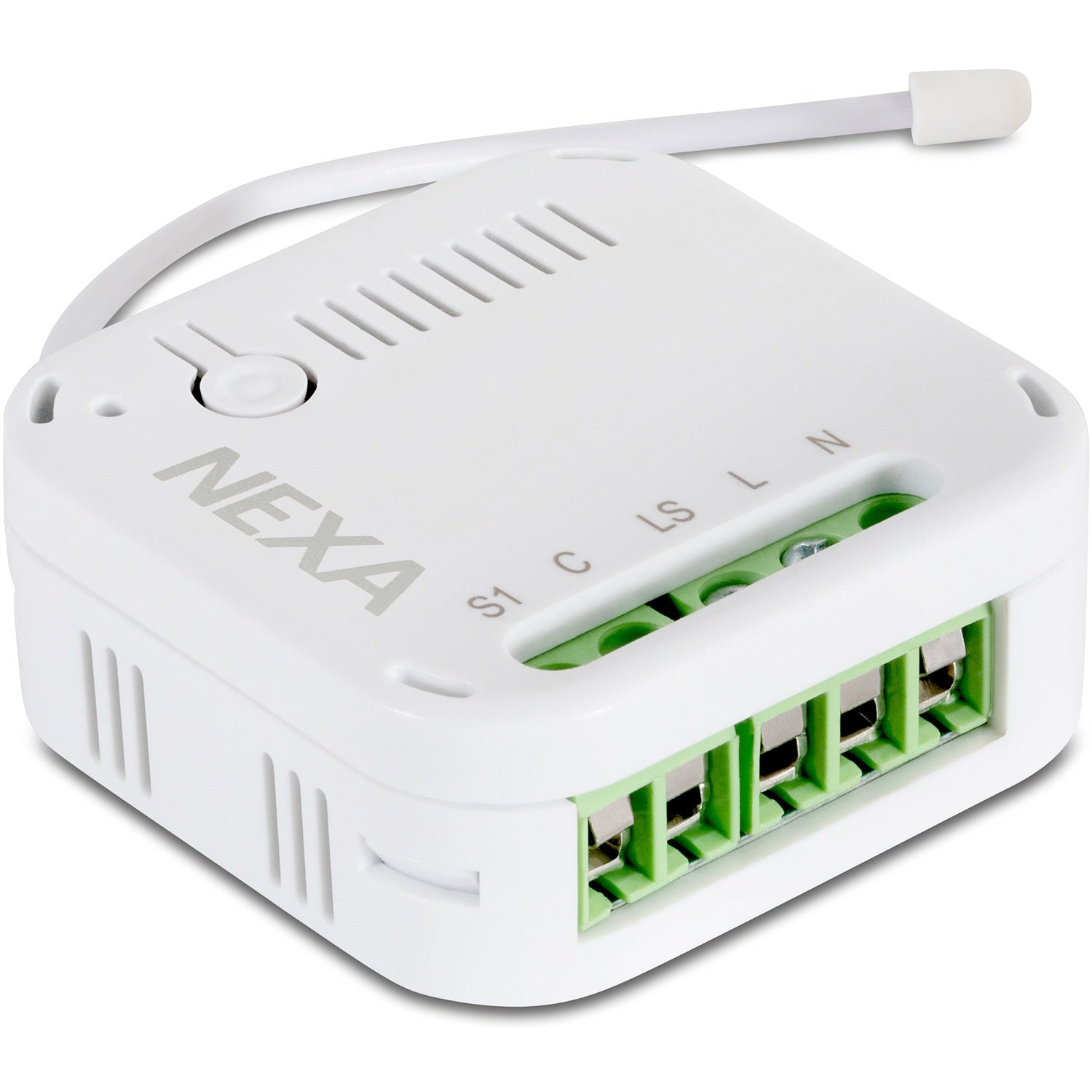

Nexa ZBD-110 built-in dimmer

Z-Wave 700 universal dimmer for fixed installation with spring-loaded switch input. ZBD-110 detects and adapts settings to connected load , has energy measurement and can be connected with or without neutral conductor.

• Auto detection of load type • Auto calibration of min. level • Energy measurement • Pushdim • Adjustable ramp time 1-600 seconds • Selectable linear/logarithmic dimmer curve • Memory for last status • Z- Wave 700 series

Technical data Power source: 220-240 V ~50Hz Max. load: 40–250 W Incandescent Max. load: LED 2-200 W LED / 10-200 W LED in series with load Operating temperature: 0° to 40°C RH 8-80% Protocol: Z-Wave (868.42 MHz) IP classification: IP22 (Indoor use) Dimensions (H x W x D): 43 x 42 x 17.5 mm
