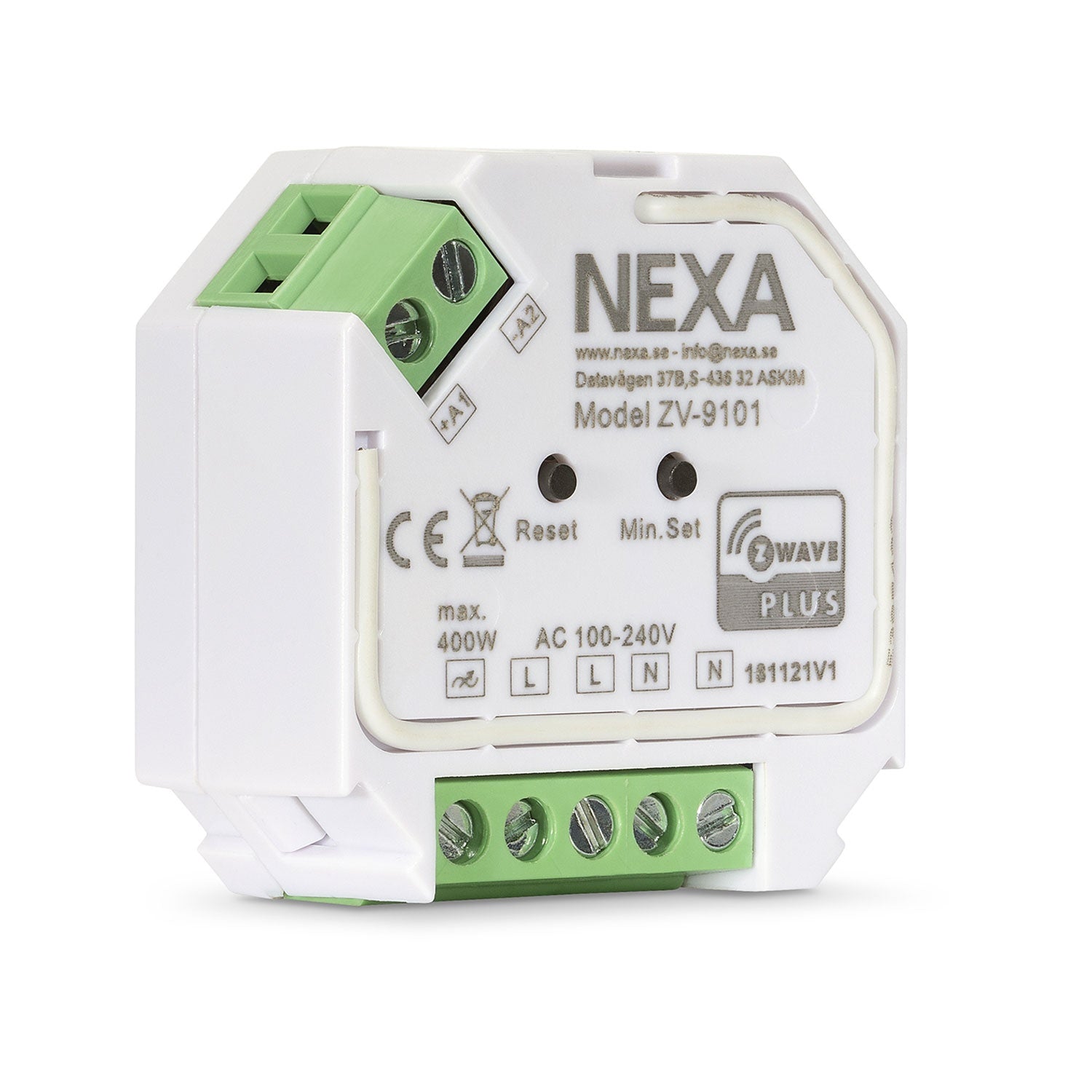

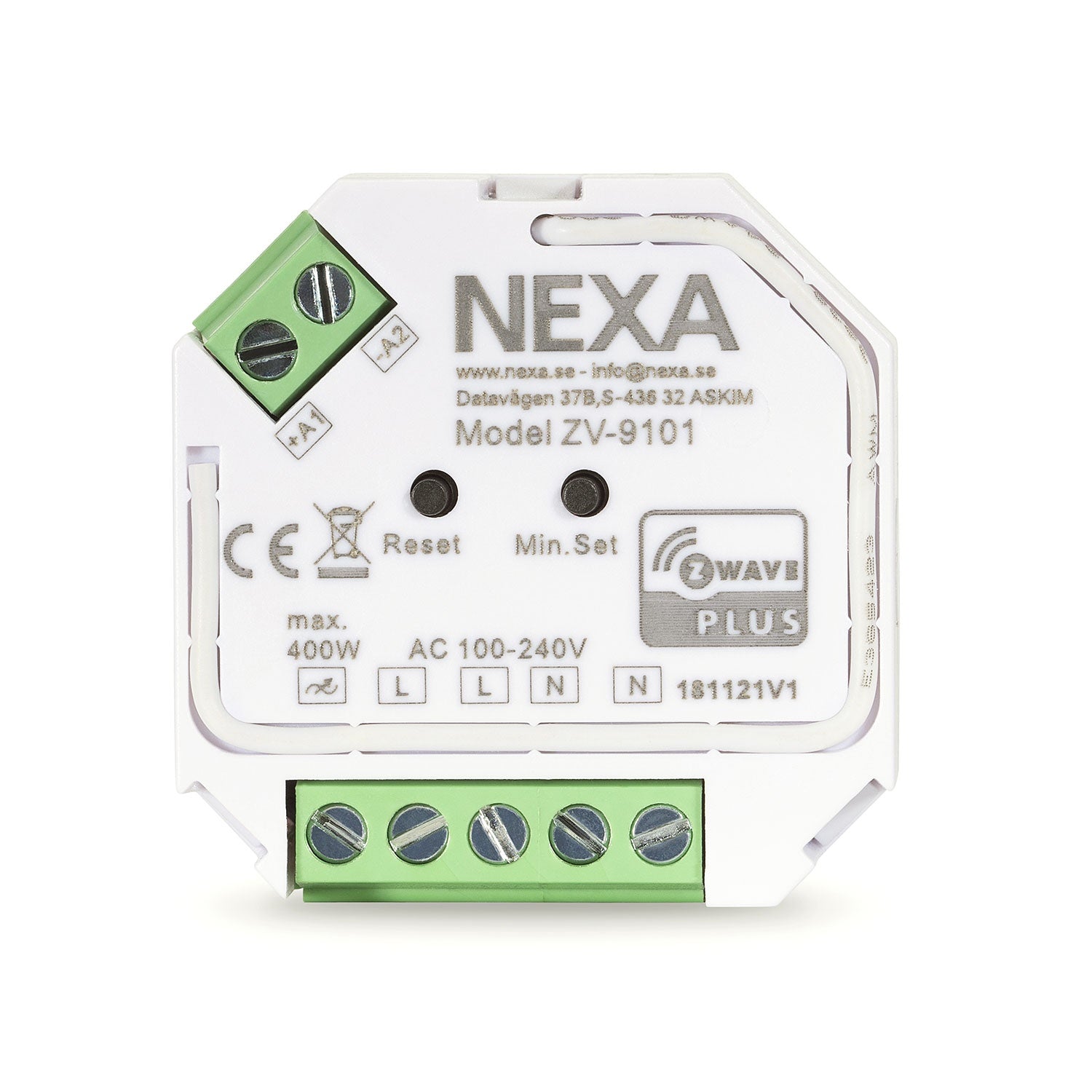

ZV-9101 Dose dimmer

Z-Wave Plus built-in dimmer for fixed installation with spring-loaded switch input. Adjustable between leading edge and trailing edge controlled phase dimming, as well as setting for minimum dimmer level.

- Front and trailing edge controlled phase dimming - Adjustable minimum dimmer level - Pushdim function - Z-Wave Plus - Up to 400W incandescent - Up to 200W LED

Technical data Power source: 220-240 V ~50Hz Max. load: 40–400 W R / 20–200 W RC, RL Max. load LED: 4–200 W LED Operating temperature: 0° to 40°C RH 8–80% Frequency: Z-Wave (868.42 MHz) IP classification: IP22 (Indoor use ) Dimensions (H x W x D): 45 x 45 x 20 mm Art.nr: 86816 E-number: 1710854
