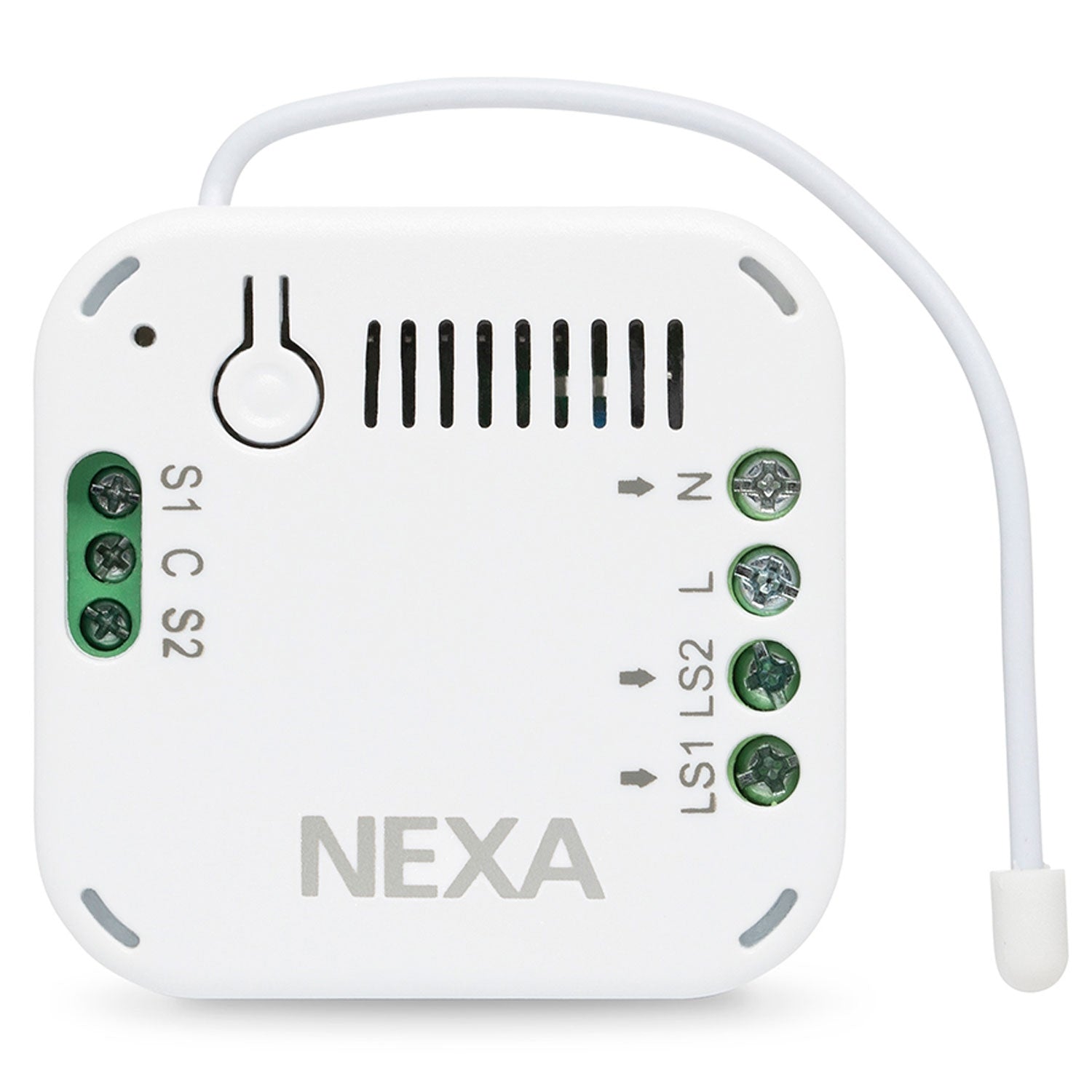

Nexa AN-196: Built-in receiver 2 channels, on/offSmall and flexible receiver that can be placed in a junction or appliance box.... Read more
€52,99 €47,99
Nexa AN-196: Built-in receiver 2 channels, on/off Small and flexible receiver that can be placed in a junction or appliance box. The receiver has a built-in switch-off timer with a delay of up to 12 hours per channel, set via Z-Wave parameter. The receiver needs both phase and neutral. Controlled with Nexa Bridge X or any Z-Wave controller. - Z-Wave Plus with support for Secure 2 - Off timer, up to 12 hours / channel - Max 1000 W / channel, Resistive - Can be controlled with existing wall switch, also resilient
Max power per load: Light bulbs & Resistive load (230V): 1000W /220-240V Halogen lamps (230V): 450W / 220-240V LED & low energy lamps (230V): 130W / 220-240V (40W x 3) Power source: 220-240 V ~50 Hz Max load: 1000 W / channel Resistive Power consumption: < 1 W (standby) Range: Up to 30 meters Radio frequency: 868.42 MHz Operating temperature: -10 °C to 40 °C IP classification: Indoor use (IP20 ) Dimensions, W x H x D: 43 x 42 x 16 mm
