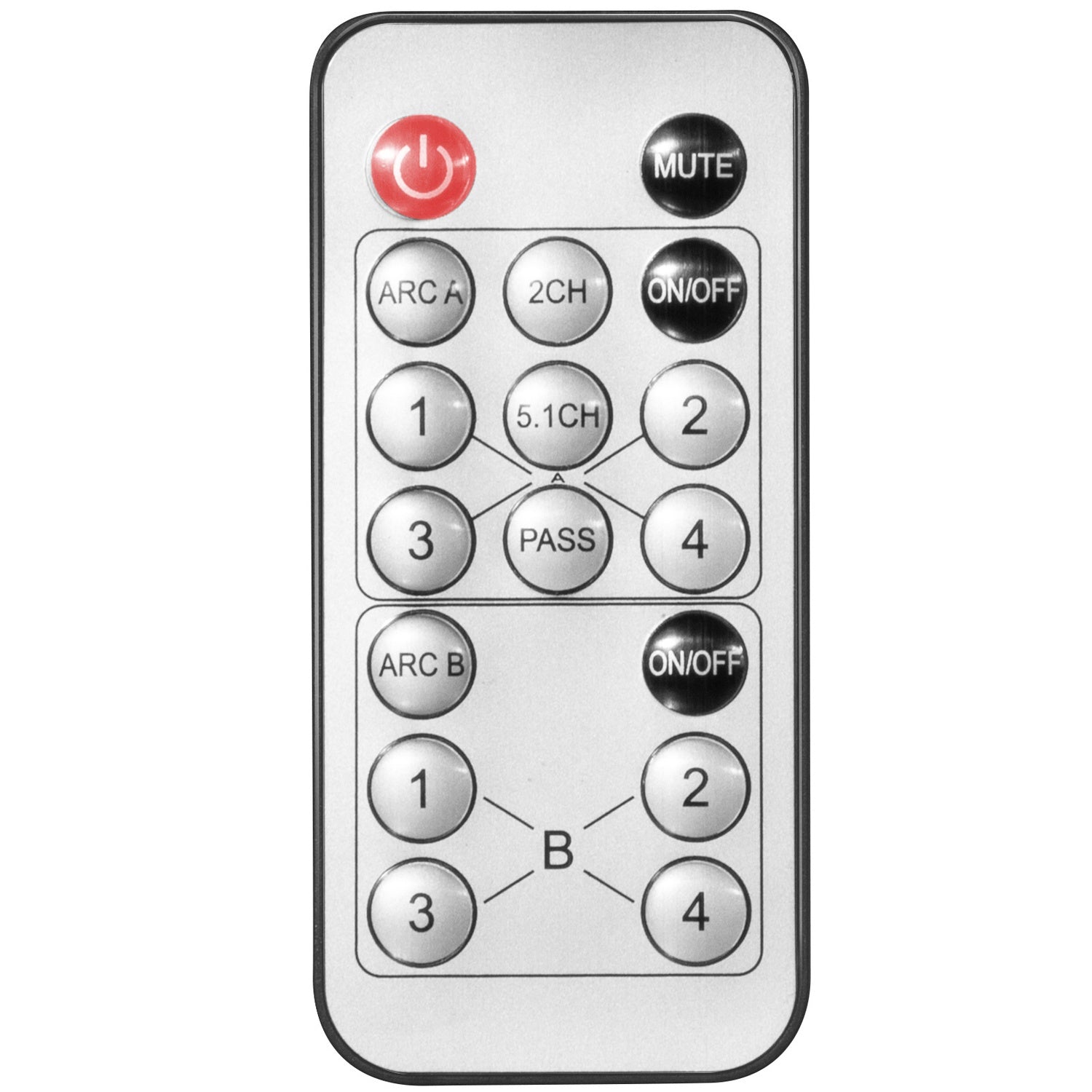

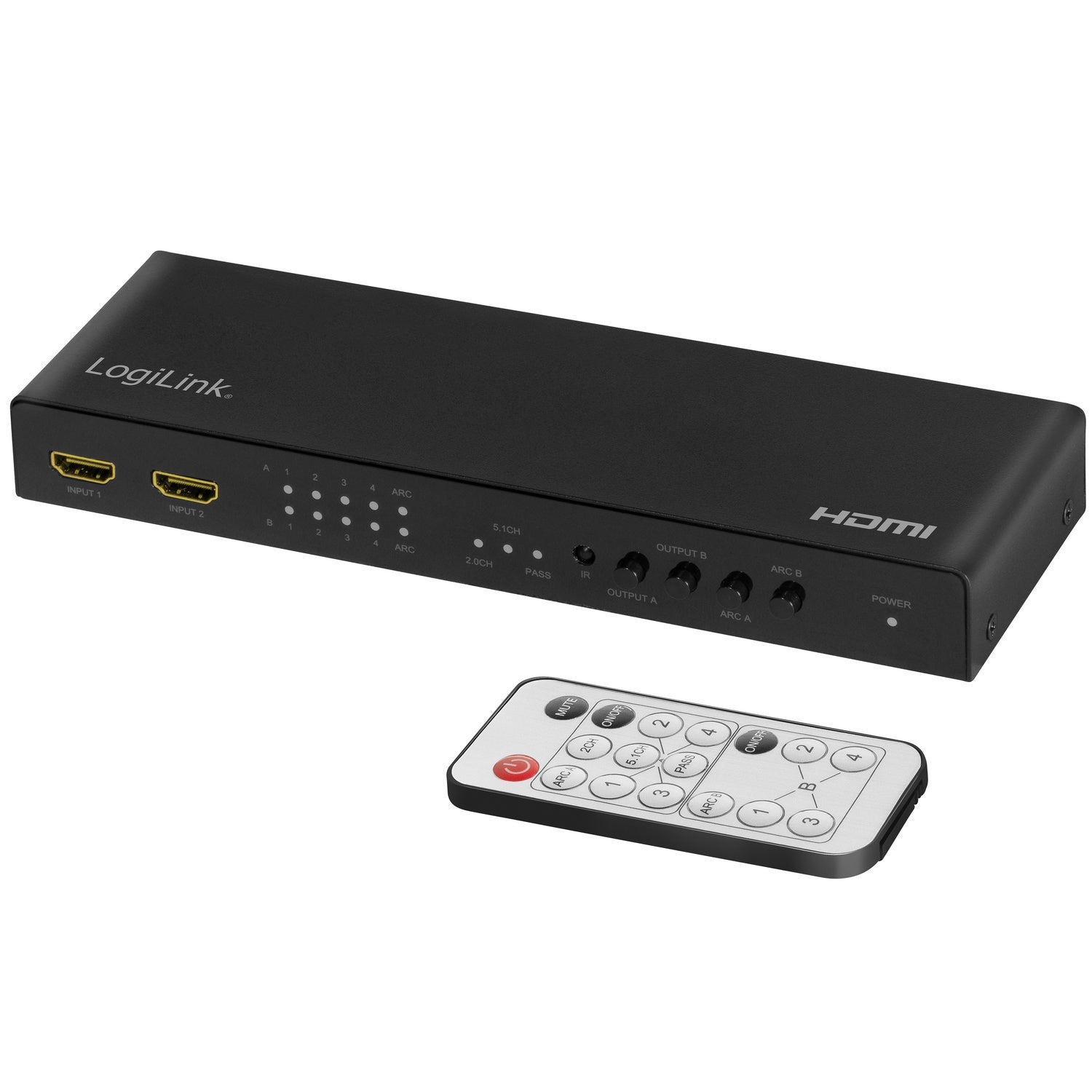

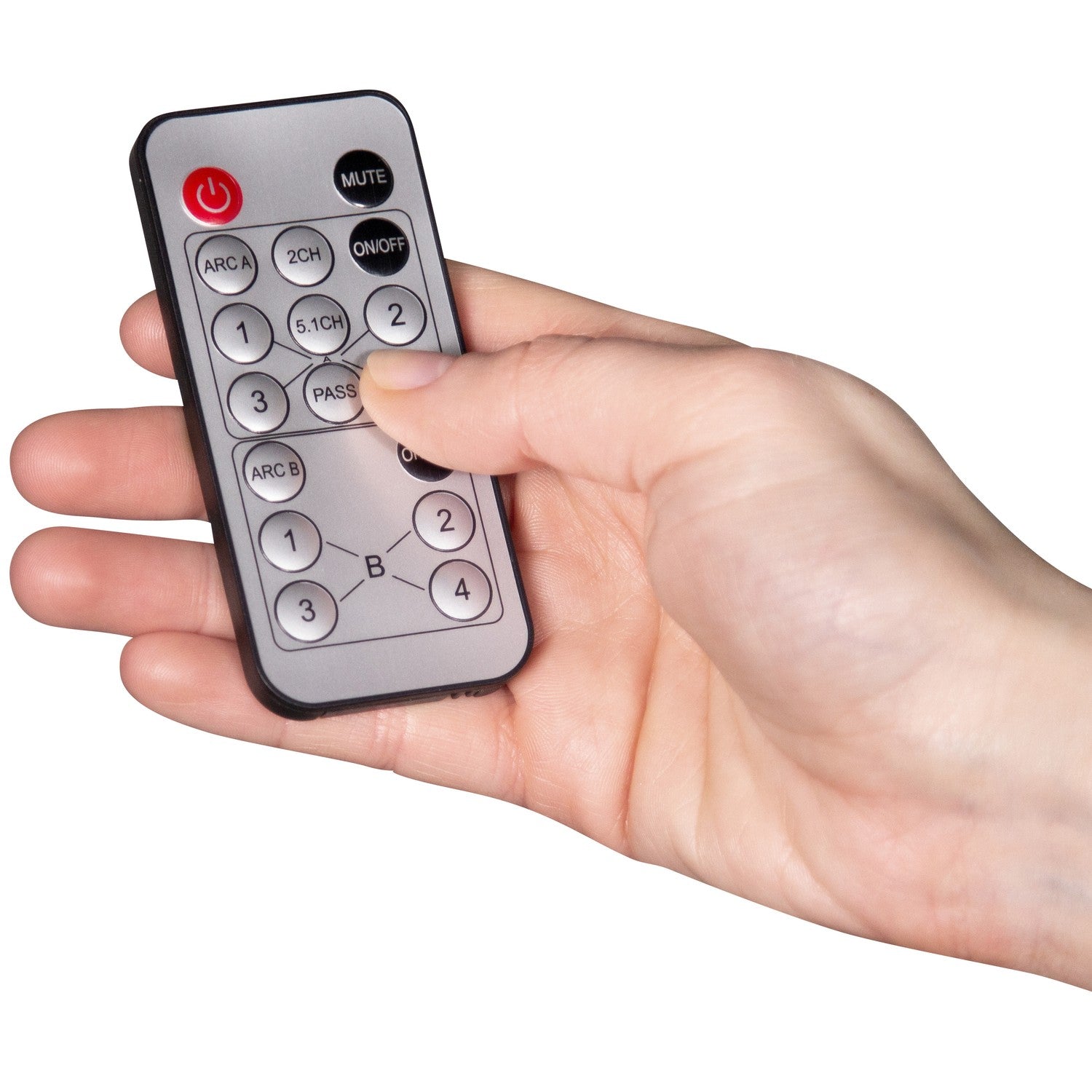

4K 4x2 HDMI ™ Matrix Switch, ARC, Downscaler, 4K / 60 Hz A high-performance 4K HDMI Matrix Switch with IR remote control that switches between four HDMI sources to two HDMI displays, whether 4K or 1080p resolution. Resolution up to 4K @ 60 Hz and is HDCP 2.2 compliant. Features 4K to 1080p downscaling, ARC and Audio Extraction.

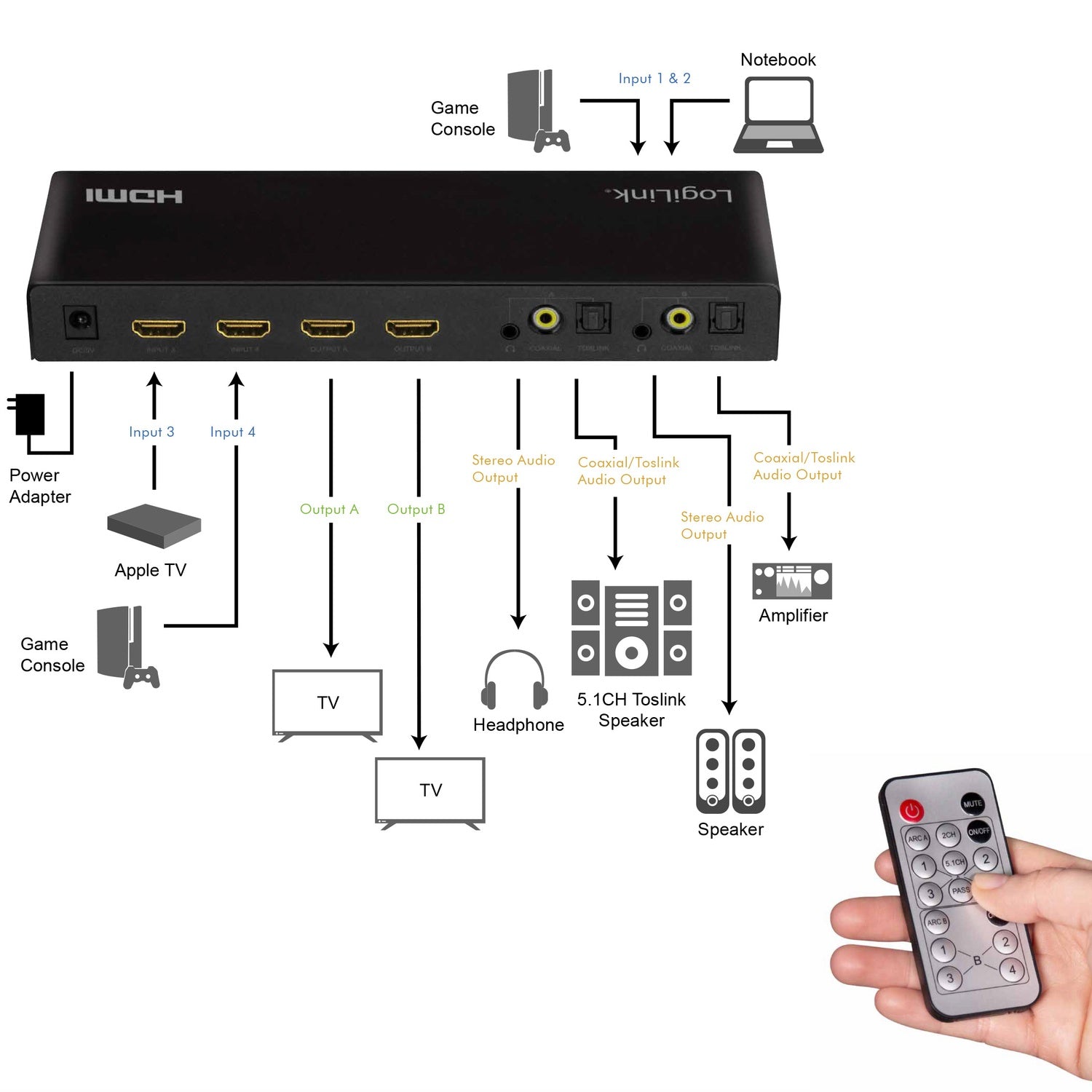

- Connects four HDMI sources to two HDMI displays simultaneously - Resolution up to UHD 4K @ 60 Hz (YUV 4: 4: 4 ) and Full 3D - Bandwidth: 6 Gbps / 600 MHz per channel (total 18 Gbps) - Supports HDCP 2.2 - Supports DDC, HDR, CEC and Downscaling function - Supports 12 bits per channel (36bit all channels) deep color - Supports audio output, simultaneously: Stereo, Toslink and Coaxial - Audio channels can be selected via remote control - Both output ports support Audio Return Channel (ARC) and the audio output function - Supports uncompressed audio such as LPCM - Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio ™ and DolbyTrueHD)

ARC (Audio Return Channel) The device supports ARC and with the ARC buttons on the device it is possible to control the ARC channel (on/off) fed by the connected TVs* on the output side. Ideal for reducing the number of cables behind the TV. *Requires ARC support on the TV.

4K-to-1080P downscaling Direct your 4K video sources to 4K displays and 1080p displays simultaneously via downscaling. This gives the possibility to display different resolutions on different screens with different maximum resolutions even though it is the same resolution on the source.

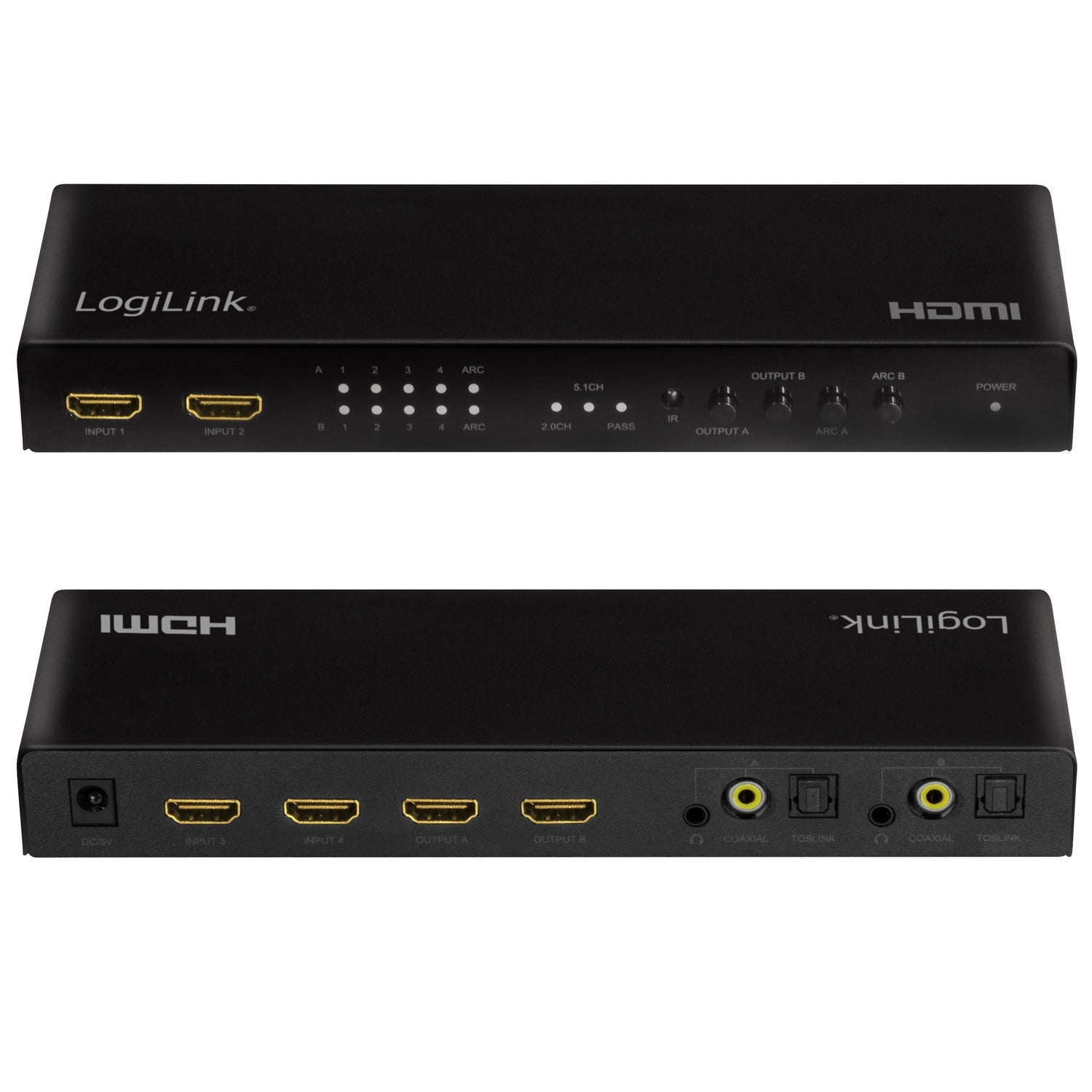

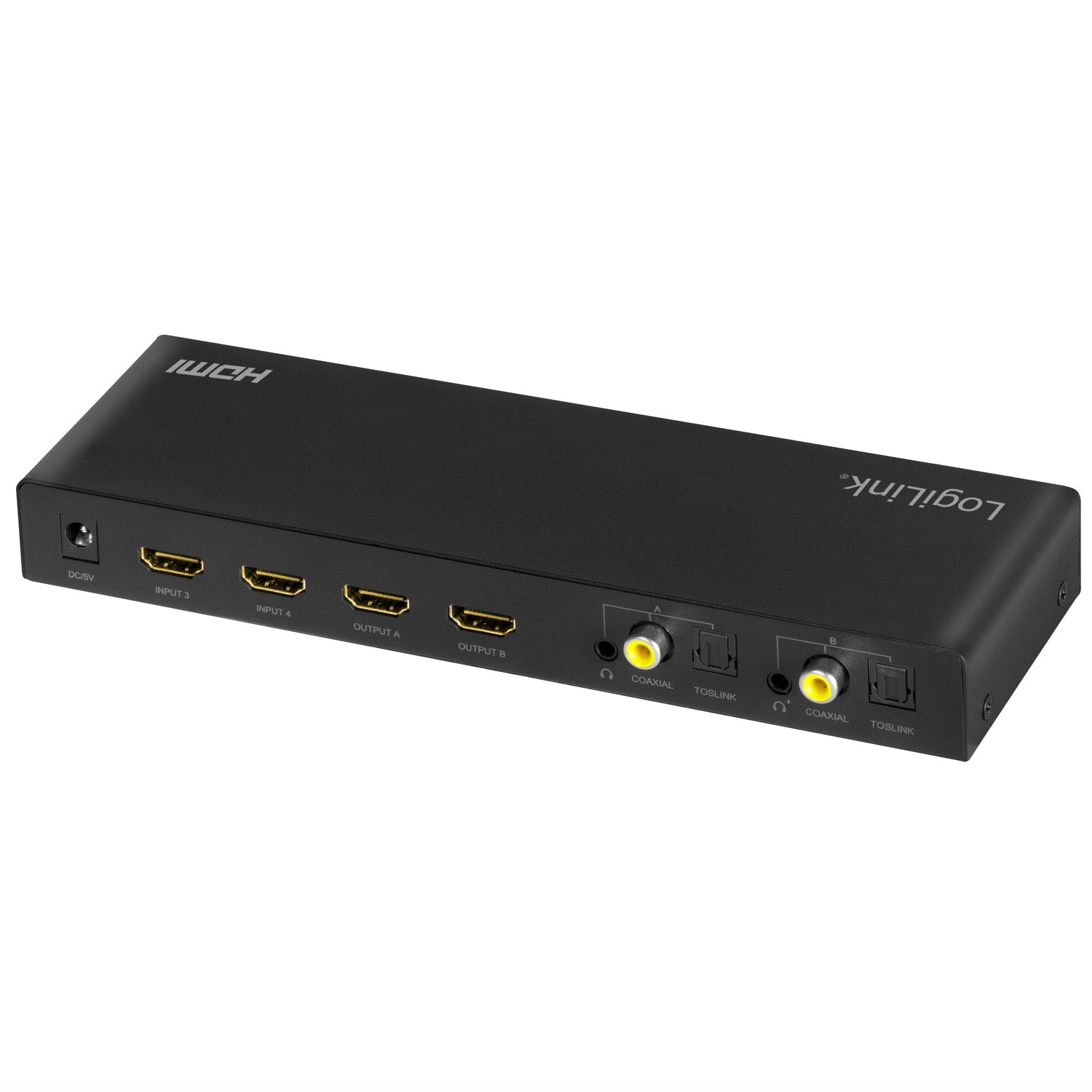

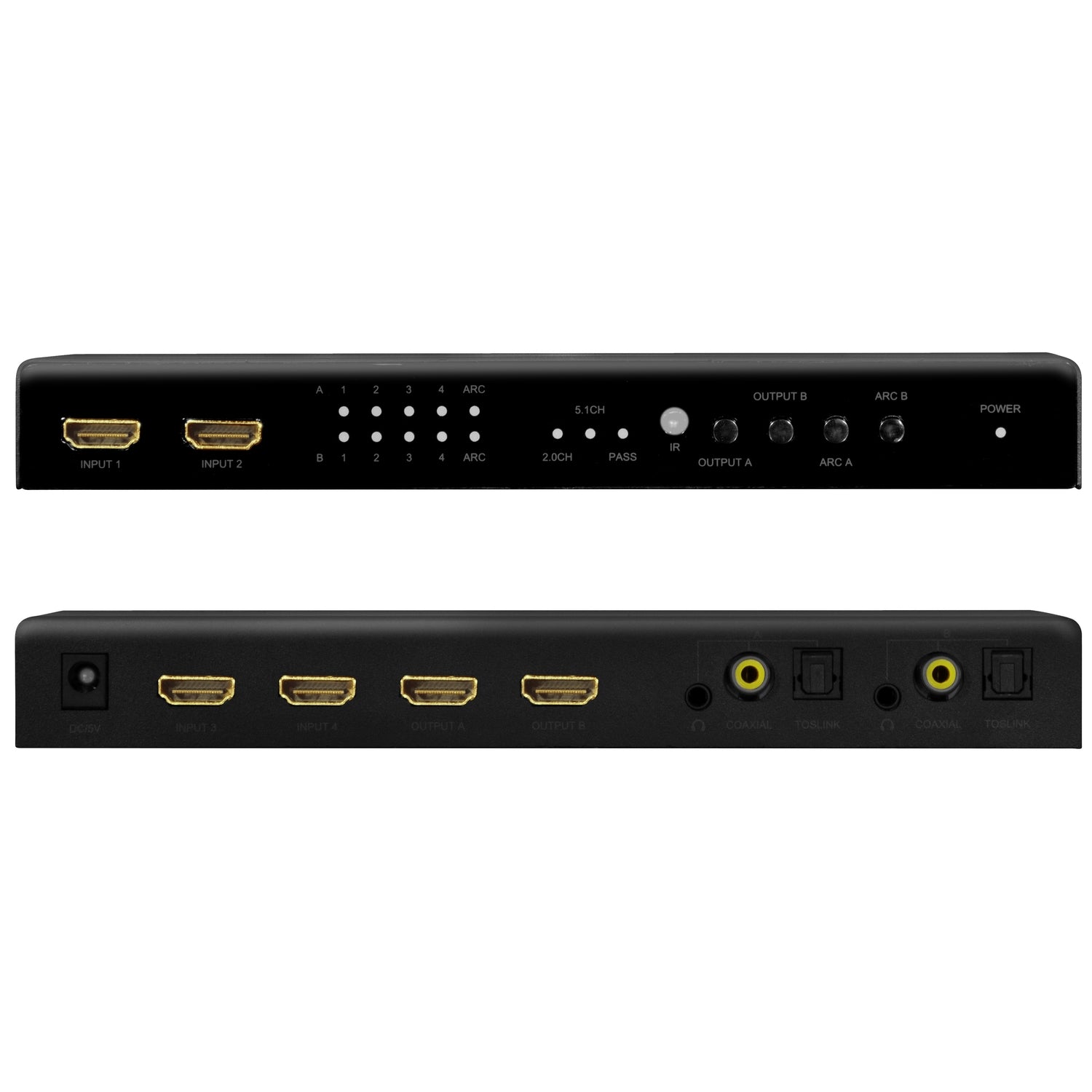

Specifications In: 4x HDMI-A female, 1x DC socket Out: 2x HDMI-A female, 2x Coaxial, 2x SPDIF (Toslink), 2x 3.5mm phono socket HDMI: Version 2.0 HDCP: Version 2.2 HDMI ARC: Yes HDMI HDR: Yes Video Resolution Out: 480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p /50 Hz, 720p/50/60 Hz, 1080p/24/25/30/50/60 Hz, 4K@24/25/30 Hz, 4K@50/60 Hz Video bandwidth: 6 Gbps/600 MHz SPDIF: Yes Switch: Manual switch for output selection Power consumption: 5W max. Power supply: 5 V/2 A Uncompressed audio: LPCM 7.1 Compressed audio: HDMI: DTS-HD Master Audio™, Dolby TrueHD SPDIF: DTS/Dolby Digital Coaxial: DTS/Dolby Digital Dimensions: 56 x 40 x 61 mm p>
